Lesson 4: Data Loading

This tutorial briefly introduces 3 methods to load the example data FAA into Apache Cloudberry tables you have created in the previous tutorial Lesson 3: Create Tables. Before continuing, make sure you have completed the previous tutorial.

Method 1: Use the INSERT statement. This is the easiest way to load data. You can execute INSERT directly in psql, run scripts that have INSERT statements, or run a client-side application with database connection. It is not recommended to use INSERT to load a large amount of data, because the loading efficiency is low.
Method 2: Use the SQL statement COPY to load data into database. The COPY syntax allows you to define the format of the text file so that data can be parsed into rows and columns. This method is faster than the INSERT statement. But, like INSERT statement, COPY is not a parallel data loading process.

The COPY statement requires that external files be accessible to the host where the coordinator process is running. On a multi-node Apache Cloudberry system, data files might reside on a file system that is not accessible from coordinator node. In this case, you need to use the psql command \copy meta-command that streams data to Cloudberry coordinator node over psql connection. Some example scripts in this tutorial use the \copy meta-command.
Method 3: Use Apache Cloudberry utilities to load external data into tables. When you are working with a large-scale data warehouse, you might often face the challenge of loading large amounts of data in a short time. The utilities, gpfdist and gpload, are tailored for this purpose, enabling you to achieve rapid, parallel data transfers.

During your data loading process, if any rows run into issues, they will be noted. You can set an error threshold that fits your needs. If the number of problematic rows exceeds this limit, Apache Cloudberry will stop the loading process.

For optimal speed, combine the use of external tables with the parallel file server (gpfdist). This approach will help you maximize efficiency, making your data loading tasks smoother and more efficient.

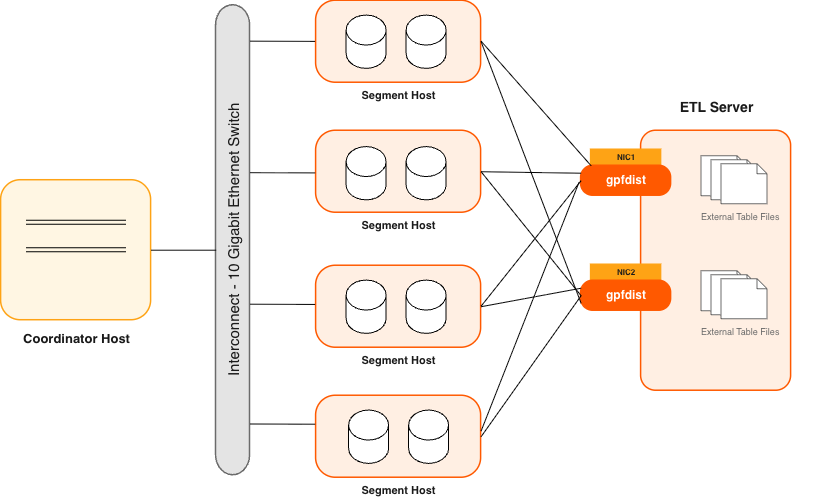

Figure 1. External Tables Using Parallel File Server (gpfdist)

Another utility gpload is a batch job. When using this utility, you should specify a YAML-formatted control file, describe source data locations, format, transformations required, participating hosts, database destinations and other particulars in the file. gpload will parse the control file and use gpfdist to execute the task. This allows you to describe a complex task and execute it in a controlled and repeatable way.

Quick-start operations

In the following exercise, you will load sample data into the tutorial database using each of these above methods.

Load data using `INSERT`

In Lesson 3: Create Tables, you have created 6 tables in the tutorial database, one of which is d_cancellation_codes in the faa directory.

The faa.d_cancellation_codes table is a simple 2-column look-up table. You will load data into the table using the INSERT statement.

Log into Apache Cloudberry in Docker as gpadmin, and change to the faa directory. This directory contains faa data and scripts.
```
[gpadmin@cdw ~]$ cd /tmp/faa
```

Log into the tutorial database as lily.

[gpadmin@cdw faa]$ psql -U lily -d tutorial

Password for user lily:  # changeme

psql (14.4, server 14.4)
Type "help" for help.

tutorial=>

Check the faa.d_cancellation_codes table.

tutorial=> \d d_cancellation_codes

Output:

          Table "faa.d_cancellation_codes"
   Column    | Type | Collation | Nullable | Default
-------------+------+-----------+----------+---------
 cancel_code | text |           |          |
 cancel_desc | text |           |          |
Distributed by: (cancel_code)

Insert data into the faa.d_cancellation_codes table.

tutorial=> INSERT INTO faa.d_cancellation_codes
tutorial-> VALUES ('A', 'Carrier'),
tutorial-> ('B', 'Weather'),
tutorial-> ('C', 'NAS'),
tutorial-> ('D', 'Security'),
tutorial-> ('', 'none');

Output:

INSERT 0 5
tutorial=>

Load data using `COPY`

The COPY statement moves data from the file system to database tables. Data for 5 of the faa tables is in the following CSV-formatted text files:

In a text editor, open and check the following .csv data files.
- L_AIRLINE_ID.csv
- L_AIRPORTS.csv
- L_DISTANCE_GROUP_250.csv
- L_ONTIME_DELAY_GROUPS.csv
- L_WORLD_AREA_CODES.csv
Note that the first line of each file contains the column names, and that the last line of each file contains the characters ., which signals the end of the input data.
In a text editor, open and check the following SQL scripts:
- copy_into_airlines.sql
- copy_into_airports.sql
- copy_into_delay_groups.sql
- copy_into_distance_groups.sql
- copy_into_wac.sql

Log into the tutorial database as lily.

[gpadmin@cdw faa]$ psql -U lily -d tutorial

Password for user lily:  # changeme

psql (14.4, server 14.4)
Type "help" for help.

tutorial=>

Run the following psql \i commands to load data into the faa tables.

tutorial=> \i copy_into_airlines.sql
tutorial=> \i copy_into_airports.sql
tutorial=> \i copy_into_delay_groups.sql
tutorial=> \i copy_into_distance_groups.sql
tutorial=> \i copy_into_wac.sql

Output:

COPY 1514
COPY 1697
COPY 15
COPY 11
COPY 342
tutorial=>

Load data using the `gpdist` utility

For the faa fact table, you will use an ETL (Extract, Transform, Load) process to load data from the source gzip files into a data table. For the best loading speed, use the gpfdist utility to distribute rows to segments.

In production system, gpfdist runs on file servers that external data resides. However, for a single-node Apache Cloudberry instance, there is only one logical host, so you run gpfdist on it as well. Starting gpfdist is similar as a file server, no data movement will occur until SQL query request has been ended.

Note:

This exercise loads data using gpfdist to move data from external data files into Apache Cloudberry. Moving data between the database and external tables also needs security request. Therefore, only superusers are permitted to use gpfdist and you will complete this exercise as gpadmin user.

Start gpfdist:
```
[gpadmin@cdw tmp]$ gpfdist -d /tmp/faa -p 8081 > /tmp/gpfdist.log 2>&1 &
```
In this operation:
- -d /tmp/faa: Specifies the directory where the data files reside. The utility will serve the files from /tmp/faa.
- -p 8081: Sets the port on which gpfdist will listen, in this case, port 8081.
- > /tmp/gpfdist.log: Redirects standard output to a log file at /tmp/gpfdist.log.
- 2>&1: Ensures that both standard output and standard error are redirected to the same log file.
- &: Runs the process in the background.
Once executed, you see 6581, which indicates the background job number [1] and its process ID 6581.

Check the running processes:

[gpadmin@cdw tmp]$ ps -ef  |grep gpfdist

This command checks whether gpfdist is running:

gpadmin   6581  6552  0 16:02 pts/8    00:00:00 gpfdist -d /tmp/faa -p 8081
gpadmin   6585  6552  0 16:02 pts/8    00:00:00 grep --color=auto gpfdist

View the log file:

[gpadmin@cdw tmp]$ more /tmp/gpfdist.log

This command allows you to view the contents of the gpfdist.log file. The log messages indicate the initialization steps of the gpfdist utility:

2023-07-25 16:02:41 6581 INFO Before opening listening sockets - following listening sockets are available:
2023-07-25 16:02:41 6581 INFO IPV6 socket: [::]:8081
2023-07-25 16:02:41 6581 INFO IPV4 socket: 0.0.0.0:8081
2023-07-25 16:02:41 6581 INFO Trying to open listening socket:
2023-07-25 16:02:41 6581 INFO IPV6 socket: [::]:8081
2023-07-25 16:02:41 6581 INFO Opening listening socket succeeded
2023-07-25 16:02:41 6581 INFO Trying to open listening socket:
2023-07-25 16:02:41 6581 INFO IPV4 socket: 0.0.0.0:8081
2023-07-25 16:02:41 6581 INFO Opening listening socket succeeded
Serving HTTP on port 8081, directory /tmp/faa

The following operations are performed in this section:

Set up the necessary tables.

First, we'll create two tables:
- faa_otp_load: The table where data will be loaded.
- faa_load_errors: A table to log any load errors.
These operations are purely metadata-based; no actual data will be transferred at this point.
```
[gpadmin@cdw tmp]$ cd faa
[gpadmin@cdw faa]$ psql -U gpadmin tutorial

tutorial=# \i create_load_tables.sql
```
Note: If you receive an error that the faa_load_errors table already exists, you can safely ignore it.
Load data from external files.

The faa_otp_load table is structured to match the faa Web site's input data format. The external table definition will refer to files in the faa directory with a pattern otp*.gz. For our example, we have two matching files, one for December 2009 and the other for January 2010.

Now, let's move the data:
```
tutorial=# \i create_ext_table.sql
tutorial=# INSERT INTO faa.faa_otp_load SELECT * FROM faa.ext_load_otp;
```
Note: Apache Cloudberry facilitates moving data from the gzip files into the database's load table. In a production setting, there might be several gpfdist processes running, either on separate hosts or multiple on one host, each using a different port.
Examine load errors.

Errors during data loading are common. Let's examine these errors for a better understanding. For clarity, we'll display results in a format where each column data is shown on a new line:
```
tutorial=# \x  -- Changes the display of the results to one line per column, which is easier to read for some result sets.
tutorial=# select DISTINCT relname, errmsg, count(*) from gp_read_error_log('faa.ext_load_otp') GROUP BY 1,2;
```
Once you have reviewed the errors, you can end your session:
```
tutorial=# \q
[gpadmin@cdw faa]$
```
Summary: By now, you should have set up your tables, loaded the data, and had a quick look at any loading errors. This ensures that you have a good understanding of the data quality and structure.

Load data using the `gpload` utility

Apache Cloudberry provides a wrapper program for gpfdist called gpload that does much of the work to set up external table and data movement. In this exercise, you will reload the faa_otp_load table using the gpload utility.

In this section, we walk through the process of loading data with gpload. The steps are:

Ensure the environment is clean.

Before using gpload, ensure no gpfdist processes from previous tasks are running. Here is how you can check and kill them:
```
[gpadmin@cdw faa]$ ps -ef | grep gpfdist
[gpadmin@cdw faa]$ pkill gpfdist
[gpadmin@cdw faa]$ ps -ef | grep gpfdist
```

Customize the gpload input file.

You will need to edit and tailor the gpload.yaml input file to your needs. Notably, make sure to set the correct path for the faa directory. In this guide, the gpload.yaml file has the TRUNCATE: true preload instruction. This ensures that any previously loaded data is cleared out before the current loading begins.

The following is what the gpload.yaml file might look like:

[gpadmin@cdw faa]$ cat ./gpload.yaml

---
VERSION: 1.0.0.1
# describe the Greenplum database parameters
DATABASE: tutorial
USER: gpadmin
HOST: cdw
PORT: 5432
# describe the location of the source files
# in this example, the database coordinator lives on the same host as the source files
GPLOAD:
INPUT:
    - SOURCE:
        LOCAL_HOSTNAME:
        - cdw
        PORT: 8081
        FILE:
        - /tmp/faa/otp*.gz
    - FORMAT: csv
    - QUOTE: '"'
    - ERROR_LIMIT: 50000
    - ERROR_TABLE: faa.faa_load_errors
OUTPUT:
    - TABLE: faa.faa_otp_load
    - MODE: INSERT
PRELOAD:
    - TRUNCATE: true

Run the gpload command.

Finally, you can run the gpload command to start the data loading process. If you want a detailed view of the loading, include the -v flag.
```
[gpadmin@cdw faa]$ gpload -f gpload.yaml -l gpload.log
```
Summary: At the end of this guide, you would have successfully used gpload to load data into Apache Cloudberry. Make sure to check the logs for any warnings or errors to ensure data consistency and integrity.

Create and load fact tables

The final step of the ELT process is to move data from the load table to the fact table. For the FAA example, you create 2 fact tables. The faa.otp_r table is a row-oriented table, which will be loaded with data from the faa.faa_otp_load table. The faa.otp_c table has the same structure as the faa.otp_r table, but is column-oriented and partitioned. You will load it with data from the faa.otp_r table. The 2 tables will contain identical data and allow you to experiment with a column-oriented and partitioned table in addition to a traditional row-oriented table. Then you create the faa.otp_r and faa.otp_c tables by executing the create_fact_tables.sql script. Load the data from the faa_otp_load table into the faa.otp_r table using the INSERT FROM SQL statement. Load the faa.otp_c table from the faa.otp_r table. Both of these loads can be accomplished by running the load_into_fact_table.sql script.

[gpadmin@cdw faa]$ psql -U gpadmin tutorial

psql (14.4, server 14.4)
Type "help" for help.

tutorial=# \i create_fact_tables.sql
CREATE TABLE
CREATE TABLE

tutorial=#
tutorial=# \i load_into_fact_table.sql
INSERT 0 1024552
INSERT 0 1024552
tutorial=#

Data loading summary

Key Feature: rapid data loading
- Extract, load, and t ransform (ELT): This method takes advantage of the massive parallelism of Apache Cloudberry.
- Staging: Data can be staged using methods like external tables.
- Transformation: Data transformations occur within the Apache Cloudberry.
- Performance: Set-based operations are done in parallel to maximize efficiency.
Loading mechanisms
- COPY: Loads data via the coordinator in a single process, but doesn't harness Apache Cloudberry's parallel capabilities.
- External tables:
  - Advantage: Takes advantage of the parallel processing power of segments.
  - Flexibility: One SELECT statement can access multiple data sources.
  - Data availability: Makes static data accessible within the database.
  - Protocols: Defined using file:// or gpfdist://.
  - gpfdist: A parallel-loading file server program.
  - Static data: External tables can be re-scanned during a query as data remains unchanged.
External web tables
- Features:
  - Protocols: Allows the http:// protocol or an EXECUTE clause for OS command/script execution.
  - Dynamic data: Assumes that data might change during query execution. Thus, rescanning is not permitted.
  - Performance: Might be slower if data exceeds memory capacity, leading to I/O operations.
  - Execution: Scripts or processes might run on every segment host.
- Duplication caution:
  - There is a risk of data duplication, especially when extracting data from another database.
  - Users need to be cautious and verify data when using Web tables.

Understanding and using these features and mechanisms effectively can ensure optimal data loading and management within the Apache Cloudberry.
